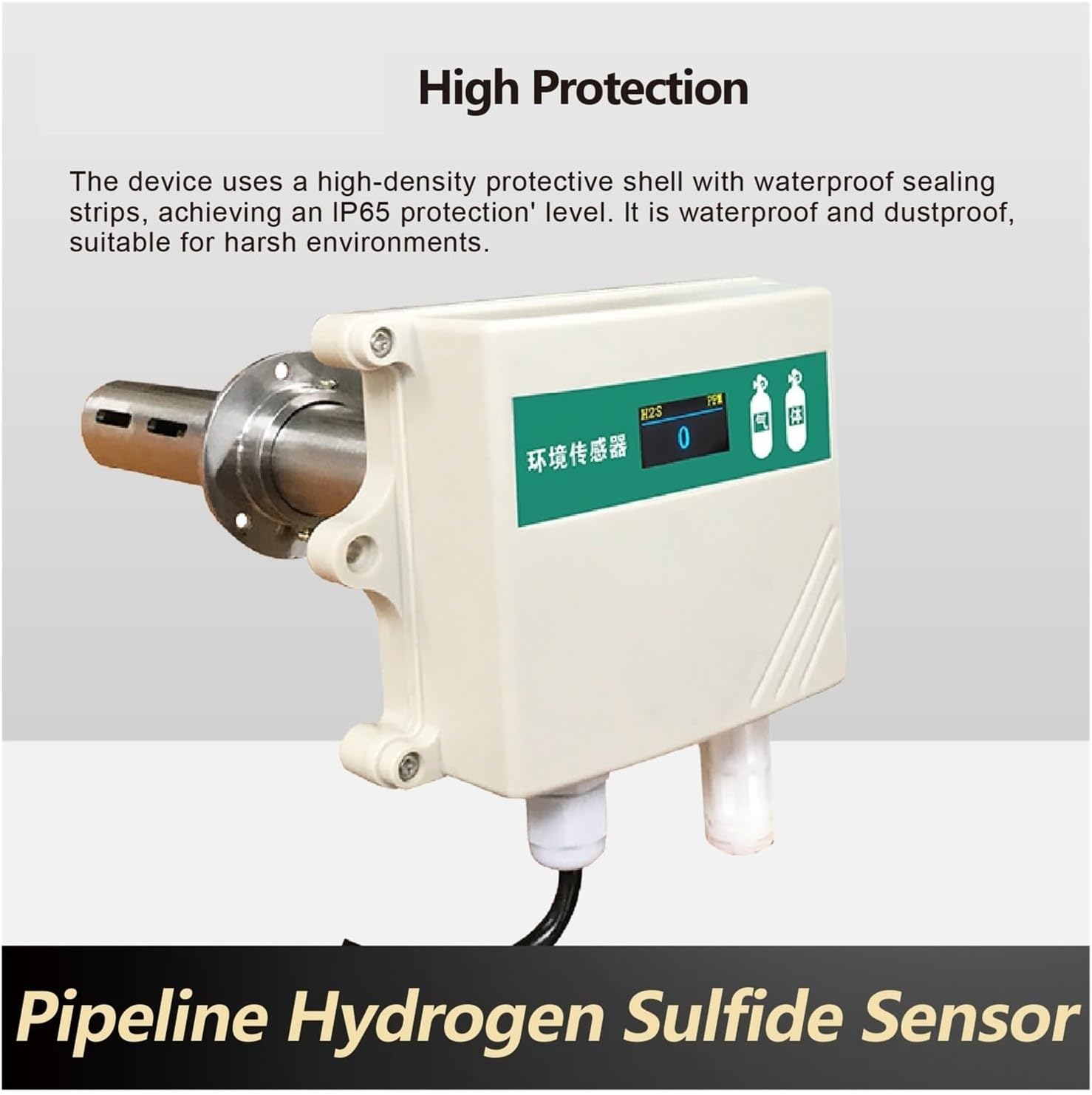

Pipeline H2S Gas Sensor Transmitter RS485 Electrochemical Hydrogen Sulfide Detector Fixed Industrial Gas Monitor

1.NOTEPlease note the following when selecting product options:Installation type: The default is pipeline installation. Custom options include wall-mounted, portable, ceiling-mounted, and more.Measurement range: Default is 0-100ppm, with customization available upon request.Signal transmission methods: Choose from RS485, 4-20mA, 0-5V, 0-10V, or upgrade to 4G connectivity for real-time data uploads.2.PARAMETERSParameterSpecificationPower Supply10~30V DCOutput SignalsRS485, 4-20mA, 0-5V, 0-10VPower Consumption0.9WTemperature Range-40°C~80°CTemperature Accuracy±0.5°C (at 25°C)Humidity Range0~100%RHHumidity Accuracy±3%RH (at 60% and 25°C)Zero Drift (H2S)±5ppmPressure Range80~116KpaResolution1%LELFEATURESPipeline installation with optional OLED screen display for real-time monitoring.Customizable signal output and data transmission options (RS485, 4-20mA, 4G, etc.).Durable waterproof housing with anti-interference design.Supports monitoring via a free cloud platform.FAQCan I customize the measurement range?Yes, we support customization. Contact us for details.What is the default installation method?Pipeline installation is standard. Other options are available upon request.Does the product support real-time data upload?Yes, with the 4G upgrade, data can be automatically uploaded to the cloud platform.Power Supply : 10~30V DCOutput Signals : RS485 4-20mA 0-5V 0-10VTemperature Range : -40°C~80°CPressure Range : 80~116Kpa

• YCCMSM13 Pipeline H2S Gas Sensor Transmitter RS485 Electrochemical Hydrogen Sulfide Detector Fixed Industrial Gas Monitor
