KP182 KP184 DC Electronic Load Meter 200W / 400W Battery Capacity Tester Power Test Aging Instrument(KP184)

Specifications of technical parameters:indicator typeKP182KP184power inputenergy consumption<;20 wattsload inputload voltageDC 1-150Vload current0-20A0-40Aload power0-200W0-400Wmeasurement accuracycurrent±0.1%+5mA±0.05%+5mAVoltage±0.1%+5mV±0.05%+5mVcontrol precisioncurrent±0.1%+5mA±0.05%+5mAVoltage±0.1%+5mV±0.05%+5mVcommunication methoddoes not support communicationRS232/RS485210W single channelSingle channel 410WPower input fuse 0.5AAmbient temperature range0 to 50 0°CWorking environment humidity range10 -90% relative humidityDC input withstand voltage±500VDCDC input terminal to chassis insulation resistance> 20M, 500VDCAC input terminal to chassis insulation resistance> 20M, 500VDCDimensions (mm) length x width x heightAbout. 300×90×190

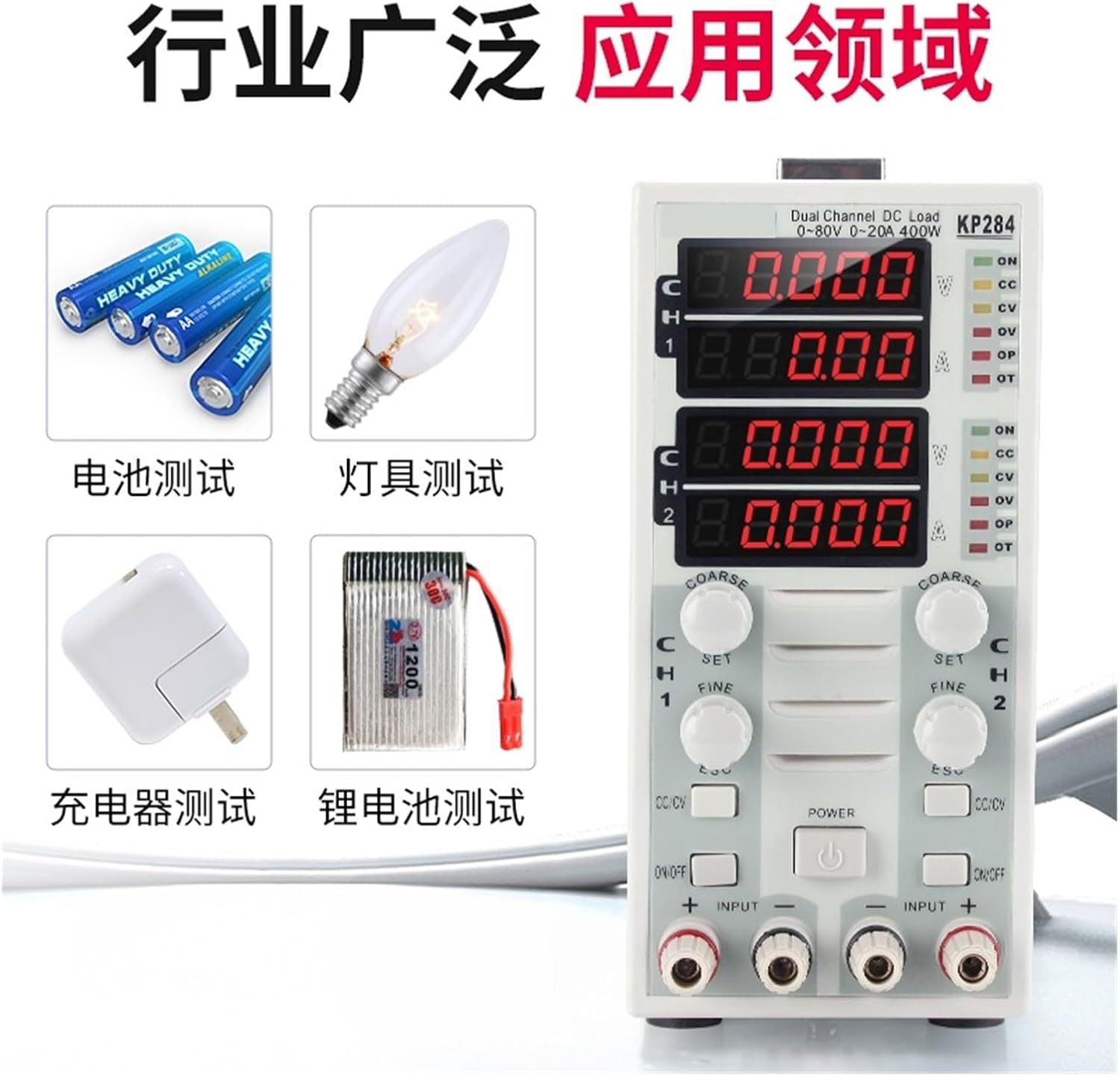

• It can be widely used in LED lighting, power supply, charger, battery and other industries to test and aging products.
• Its current mode can be used to simulate a resistive load to discharge the battery and deliver to the power supply
• Its voltage mode can be used to simulate the capacitive load for the charger, and simulate the constant voltage characteristic of the LED for the LED driver
• It is easy to use, easy to adjust, and has protection functions.
• Its performance and function are unmatched by traditional sliding wire resistors. It can greatly improve the production efficiency of the relative industry and reduce the cost.
