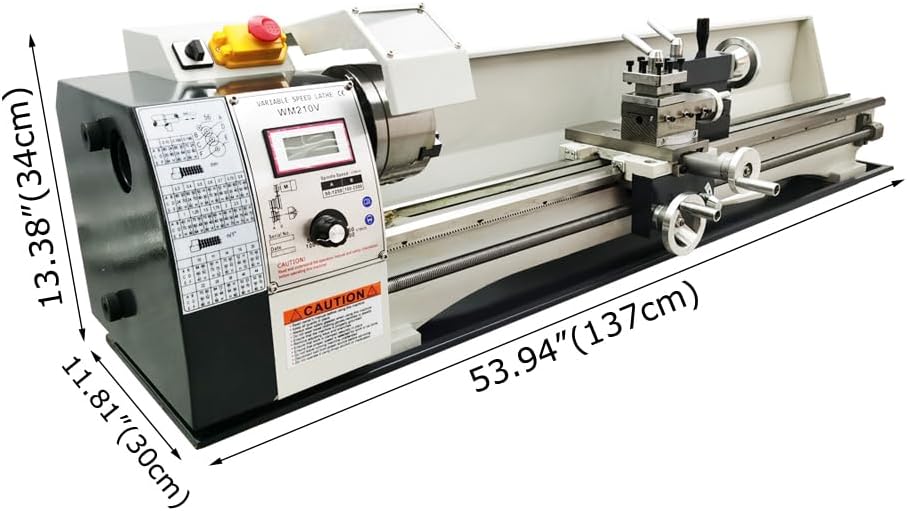

8"*39" Benchtop Metal Lathe, Inch Threads Precision Metal Lathe, 110V Mini Lathe 1100W Brushless Motor, Variable Speed 50-2500RPM
4.5 (101 items)
Limited Time SaleUS$1,047.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221716170 | Release Date | 2026/05/03 | List Price | US$698.00 | Model Number | 221716170 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Parameters Model: WM210V Voltage: AC110V 50/60Hz (Brushless Motor) Power: 1100W (1.5HP) Length of center: 39.37"(1000mm) Swing Over Bed: 8.27"(210mm) Concentricity tolerance: 0.03mm-0.05mm Rotary diameter of tool rest: 5.51"(140mm) Spindle bore: 1.26"(32mm) Max clamping diameter of chuck: 4.92"(125mm) Width of lathe bed: 3.94"(100mm) Thread standard: Inch screw thread Number of Spindle Speeds: Infinitely variable speeds Range of Inch Threads: 10-44T.P.I Range of metric threads: 0.3mm-3mm Spindle taper: MT5 Knife rest labor: Horizontal four-station Spindle rotation speed: 50-2500rpm Precision of the spindle: 0.01mm Automatic feed range: 0.1mm-0.2mm Tail frame taper: MT2 Maximum stroke of tool rest plate: 2.16"(55mm) Maximum stroke of middle plate: 2.95"(75mm) Maximum stroke of bottom plate: 26.77"(680mm) Maximum stroke of tailstock sleeve: 2.36"(60mm) Package size: 57.9"*18.5"*20.1"(147cm*47cm*51cm) Net weight/Gross weight: 178.6LB (81kg)/238.1LB (108kg)
- 1100W Brushless Motor: 1100W brushless motor with stable performance. The machine tool guide rail adopts quenching technology and is integrally cast into shape. It has excellent wear resistance and accuracy.
- Adjustable Spindle Speed: The LCD display screen displays the speed of the lathe, making operation more convenient. The spindle speed can be adjusted within the range of 50-2250RPM.
- Precision Machining: The belt drives the spindle to rotate, and the speed adjustment is more accurate. Powder metallurgy gears are not easy to break teeth, providing you with a quiet working environment. Replacing gears can machine different threads.
- Safe And Reliable: Equipped with forward and reverse switches and emergency stop switches, it can be stopped immediately in case of emergency, ensuring user safety.
- Widely Used: Micro lathes are mainly used for processing various rotating surfaces and end faces of rotating bodies. It is suitable for machining turning, drilling, metric threads, and cutting.
| Size | 8"*39" ,1100W |
|---|---|
| Item Weight | 238 pounds |
| Part Number | DX028358 |
| Manufacturer | HQHAOTWU |
| Package Dimensions | 57.87 x 20.08 x 18.5 inches |
