800W Wind Generator Vertical 12V 24V 48V Wind Turbine with PWM Charge Controller for Marine RV Home Yard Roof (48, Volts)

Model: FH-800 Rated Power(w): 800w Max Power(w): 800w Rated Voltage(v): 12V/24V/48V Blades Height(m): 1.05 Top net weight(kg): 24 Wind wheel diameter(m): 0.8 Rated wind speed(m/s): 12m/s Start-up wind speed: 1.5m/s Survival wind speed: 50m/s generator: 3 phase permanent magnet synchronous generator Service Life: More Than 20 years Bearing: HRB or for your order Blades material: Alluminum alloy Shell Material: Alluminum alloy Permanent Magnet Material: Rare Earth NdFeB Control system: Electromagnet Lubrication: Lubrication Grease Working temperature: -40 to 80

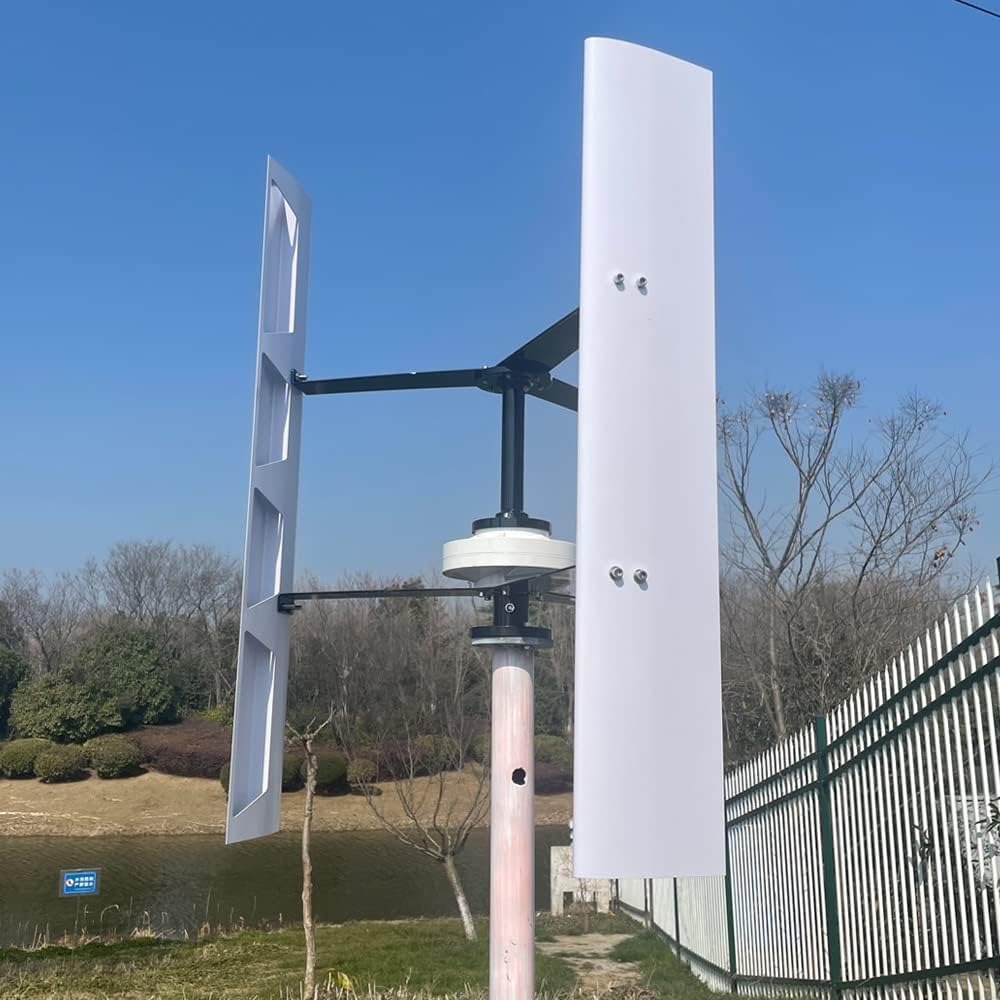

• 3-axis vertical aluminium alloy blades. The safety factor is high, as the blades are attached inside by a flange, then there is no risk of the blade falling off.
• wind blades adopt reinforced aluminium alloy which is more durable and stronger against wind. Especially with optimized aerodynamic shape and structure construction, it has a high use of wind energy. Wind turbine can start with wind of 1.5 m/s wind speed and adapt to 360° wind, no yaw system is required.
• The vertical wind turbine is quieter than the horizontal axis turbine. Double bearings make it more stable and not easy to shake when the wind generator is running. Quiet rotation, suitable for home, boat, marine, surveillance purposes, solar and wind hybrid street lighting system.
• Permanent magnet three-phase alternating current can effectively reduce the resistance torque of wind generator. Also make the wind turbine and generator better together and then run more reliably.
• Vertical axis wind turbine can use screw pile foundation. It is a cost reduction and easy and quick installation compared to concrete foundation installation. The screw pile foundation can be fully recycled at the end of its service life. An environmentally friendly and low-carbon method.
