1PCS YB28VA Digital DC Voltmeter DC 100V-600V + Sensor(DC300A,DC0-300V (Red-Blue))

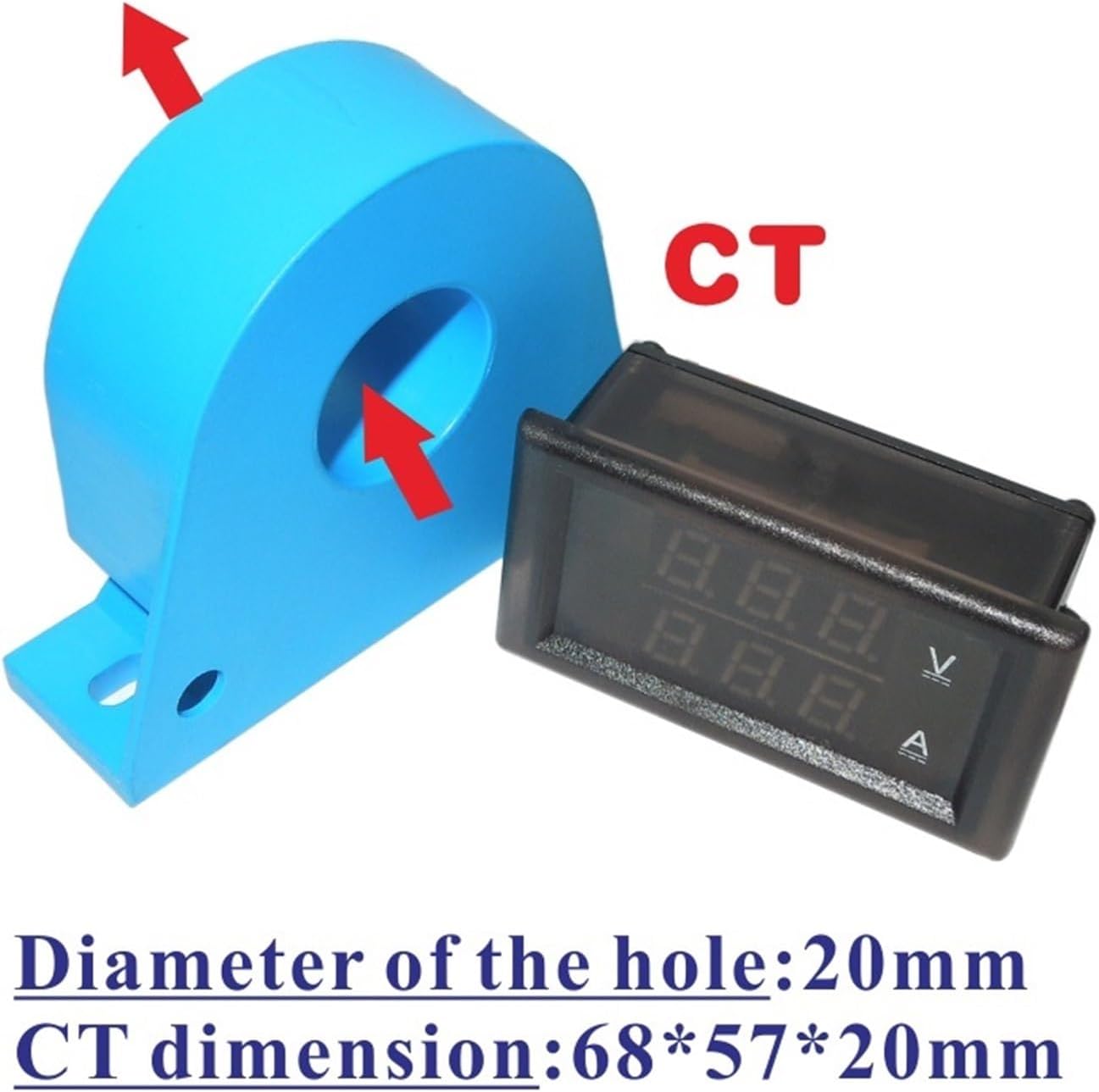

Current ProbesYB28VA Digital DC Volt-Ampere Meter DC 100V 300V 600V Voltage/Ampere Meter Sensor 0.28" LED Display1. Current transformer is included and no need to purchase separately.2. Please try not to install the meter and current transformer near high temperature and strong magnetic fieldand large , otherwise the accuracy will be affected.3. In order to obtain higher accuracy measurement, it is recommended to "warm up for 5 minutes" before measurement.4. Since the float charge voltage of a 24V battery may exceed 30V after being fully charged, it is not recommended to use it directly.It is 1.5 times or 2 times the actual test value.Power supply voltage: DC4-30V (Note: The input voltage cannot exceed 30V, otherwise it will burn out.)<;30 mATest voltage: DC0-100V/300V/600VTest current: DC0-100A/200A/500ADisplay type: 0.28'' LED, single or dual color:Red-red (voltage and current are both red); red-blue (voltage is red, current is blue)Measurement rate: 500mS/timeMeasurement accuracy: 1% (±2 digits)CT line length: 150mmTerminal wire length: 150mmSize: 54*30*21mmMounting hole: 47.2*27.3mmWide power supply range with reverse polarity protection.Size: 54*30*21mmWorking temperature: -10~+50 degreesPower supply voltage: DC4-30VAccuracy grade: 1% +/- 2 digitsModel: YB28VADisplay Type: Numbers onlyMounting hole: 47.2*27.3mmTest voltage: DC0-100V/0-300V/0-600VTest current: DC200A/300A/500ADisplay type: 0.28" LED (single color/dual color)
